日立风机 标准E2系列：VB-004-E2 VB-007-E2 VB-020-E2 VB-030-E2 VB-040E2 VB-060-E2 VB-080-E2 VB-110-E2
请查下列表格：

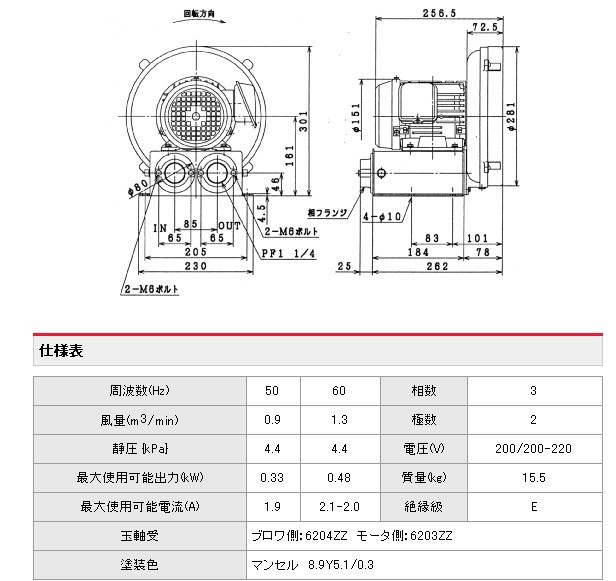

VB-004-E2：
VB-007-E2：

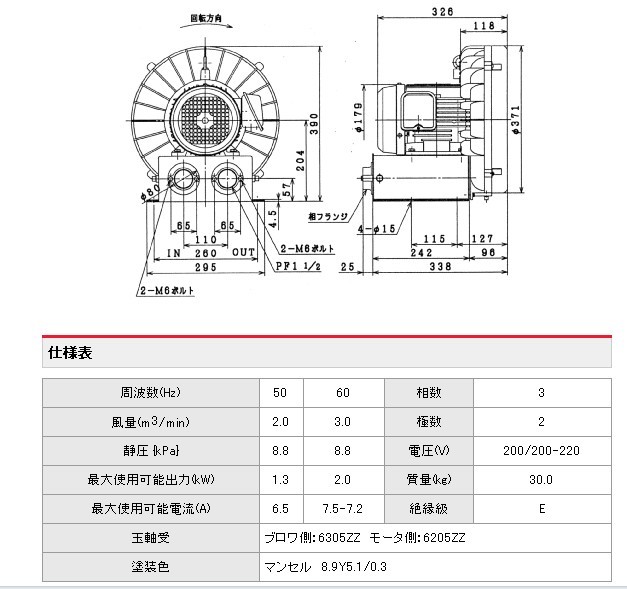

VB-020-E2:
VB-030-E2：

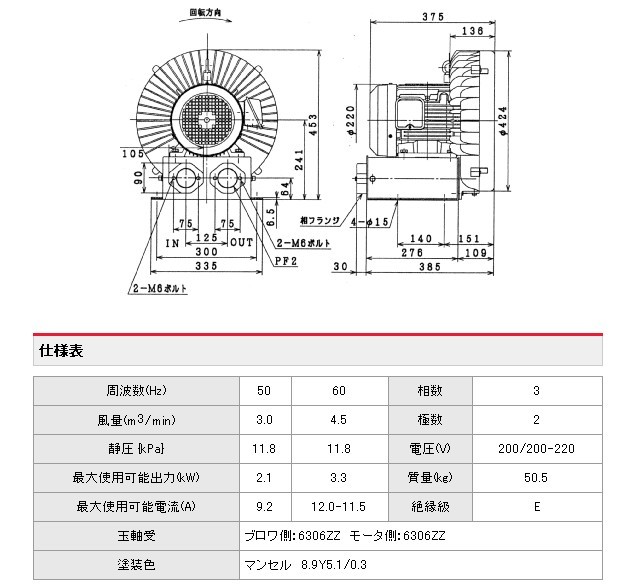

VB-040-E2：

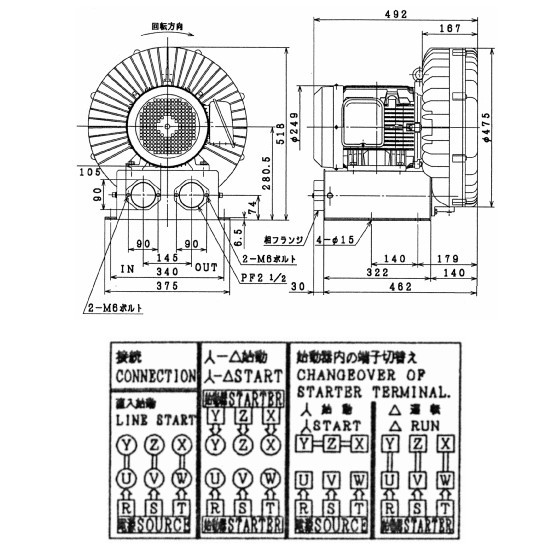

VB-060-E2:

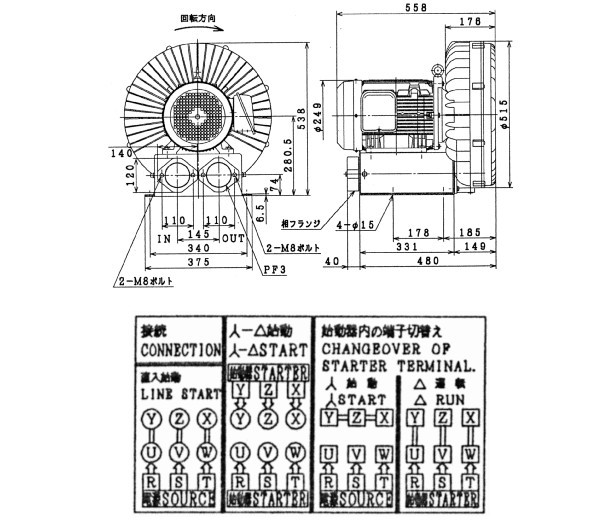

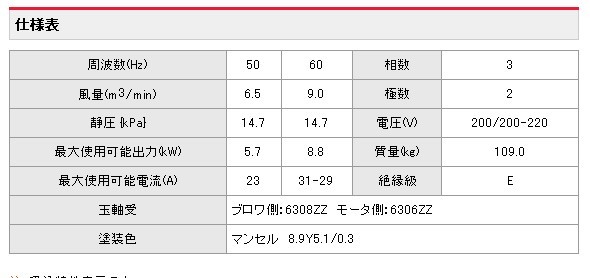

VB-080-E2：

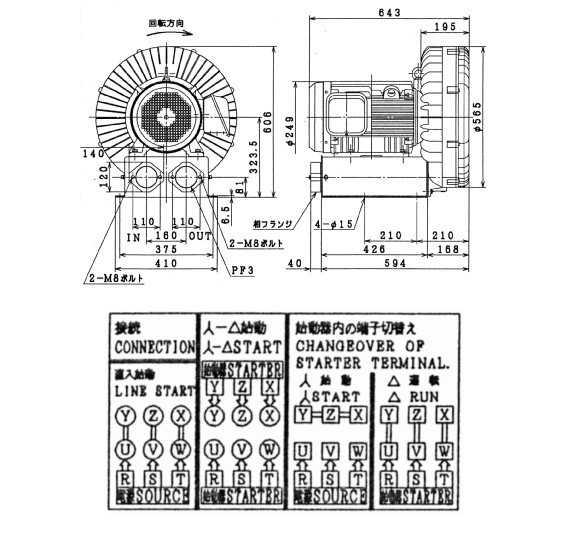

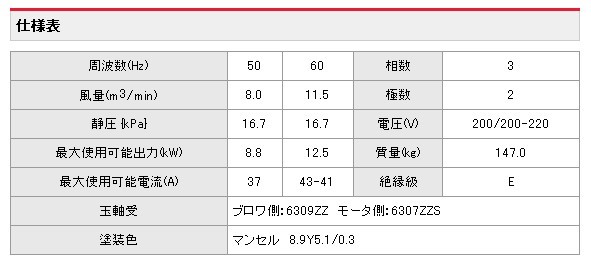

VB-110-E2：
|
大风量低噪音型 |
|
型 号 |
电 源 |
铭牌值(吸入特性) |
最大风量
(m3/min) |
|
静压
(Kpa) |
输出功率
(KW) |
电流
(A) |
|
VB-004-E2 |
3PH,220/380V,50/60HZ |
9.2 |
0.33 |
3.1/1.0 |
1.7 |
|
VB-007-E2 |
3PH,220/380V,50/60HZ |
10.8 |
0.59 |
3.1/1.6 |
2.6 |
|
VB-020-E2 |
3PH,220/380V,50/60HZ |
15.2 |
1.3 |
5.7/3.1 |
4.0 |
|
VB-030-E2 |
3PH,220/380V,50/60HZ |
17.2 |
1.8 |
10.0/4.0 |
5.0 |
|
VB-040-E2 |
3PH,220/380V,50/60HZ |
16.2 |
2.1 |
12.0/4.5 |
6.7 |
|
VB-060-E2 |
3PH,220/380V,50/60HZ |
19.6 |
4.0 |
19.6/8.2 |
9.0 |
|
VB-080-E2 |
3PH,220/380V,50/60HZ |
21.1 |
5.7 |
21.4/11.0 |
11.0 |
|
VB-110-E2 |
3PH,220/380V,50/60HZ |
25.5 |
8.8 |
43.6/17.5 |
16.0 |
|
高风压紧凑型 |
|
VB-70WS-G |
1PH,220,50HZ |
4.0 |
0.05 |
1.1 |
0.45 |
|
VB-001S-G |
1PH,220,50HZ |
5.4 |
0.08 |
1.4 |
0.6 |
|
VB-002S-G |
1PH,220,50HZ |
7.6 |
0.14 |
2.6 |
0.7 |
|
VB-003S-G |
1PH,220,50HZ |
8.8 |
0.19 |
2.9 |
1.0 |
|
VB-004S-G |
1PH,220,50HZ |
11.8 |
0.33 |
15.9/3.0 |
1.1 |
|
VB-007S-G |
1PH,220,50HZ |
12.7 |
0.51 |
7.2/3.6 |
2.0 |
|
VB-70W-G |
3PH,220/380V,50/60HZ |
4.0 |
0.04 |
0.48 |
0.45 |
|
VB-001-G |
3PH,220/380V,50/60HZ |
5.4 |
0.07 |
0.57 |
0.6 |
|
VB-002-G |
3PH,220/380V,50/60HZ |
7.6 |
0.125 |
0.81 |
0.7 |
|
VB-003-G |
3PH,220/380V,50/60HZ |
8.8 |
0.185 |
1.1 |
1.0 |
|
VB-004-G2 |
3PH,220/380V,50/60HZ |
12.7 |
0.38 |
2.8 |
1.3 |
|
VB-007-G2 |
3PH,220/380V,50/60HZ |
14.7 |
0.54 |
2.7 |
2.0 |
|
VB-015-G |
3PH,220/380V,50/60HZ |
16.1 |
1.2 |
5.0 |
3.3 |
|
VB-022-G |
3PH,220/380V,50/60HZ |
19.6 |
1.6 |
7.2 |
4.1 |
|
耐环境型 |
|
VB-004S-DN |
1PH,220,50HZ |
11.1 |
0.33 |
2.5 |
1.4 |
|
VB-007S-DN |
1PH,220,50HZ |
12.6 |
0.6 |
4.2 |
2.2 |
|
VB-004-DN |
3PH,220/380V,50/60HZ |
11.1 |
0.36 |
1.8/1.1 |
1.4 |
|
VB-007-DN |
3PH,220/380V,50/60HZ |
12.6 |
0.6 |
3.0/1.8 |
2.2 |
|
VB-020-DN |
3PH,220/380V,50/60HZ |
18.0 |
1.5 |
7.0/3.8 |
3.5 |
|
